MODEL: AS40 // FLOW

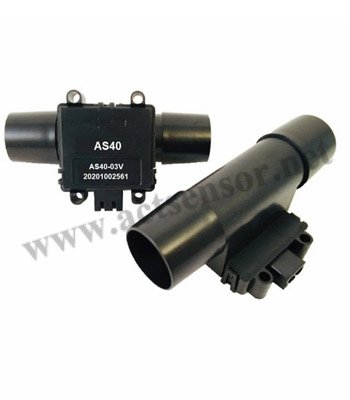

AS40 MASS AIR FLOW SENSOR (AS40)
Solid-state thermal isolation sensor die eliminating fragile membranes for harsh industrial gas piping.
Features ACT's third-generation thermal flow die with dual thermopiles for mass flow detection. Solid state isolation eliminates surface cavities and fragile membranes, resisting clogging and pressure shock. Available as AS40V analog and AS40D I²C.
Key Specifications
Factory Configurable| Parameter | Specification |
|---|---|
| Pressure range | 0 - 500 SLPM |
| Accuracy | ±1.5% Rdg |
| Output | 0-5VDC, I2C Bus, Digital Flow Pulse |
| Supply voltage | 10–28 VDC (2-wire loop) |
| Wetted material | Anodized AL / Silicon |
| Operating temperature | -10°C to +60°C |
| Protection | IP65 Housing |
| Process connection | G1/4" / G1/2" Female |
| Electrical connection | Hirschmann DIN 43650-A / M12 4-Pin / Flying lead |
Applications
✓Pneumatic Cylinder Air Consumption Auditing
✓Robotic Laser Cutting Shield Gas Flow Regulators
✓Industrial Gas Blending & Combustion Ratio Control
✓Electronics Surface Mount Clean Dry Air (CDA) Lines
✓Automated Leak Rate Test Benches
Downloads & Documentation
Datasheet (PDF)
Dimensional Drawing
Upon RequestInstallation Manual
Included with DispatchCalibration Certificate
100% TestedQAP / Inspection Documentation
Provided where applicable for OEM supplyOEM ADAPTATION & CUSTOMIZATION
Need a different pressure range, output or connection?
Talk to an ACT Application Engineer. We adapt pressure spans, wetted metallurgy (316L, Hastelloy), process threads (BSP, NPT, Tri-Clamp), and cable lengths to your exact machinery.
