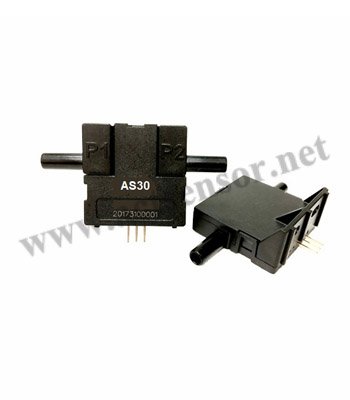

AS30 MASS AIR FLOW SENSOR (AS30)

Third-generation solid-state thermal flow sensor die with analog AS30V and digital I²C AS30D outputs.

Features third-generation thermal flow die benefiting from microfabrication. Thermopiles detect changes in temperature gradient caused by mass flow, delivering excellent signal-to-noise and repeatability. Resistant to clogging and pressure shock.

Key Specifications

Factory Configurable

Parameter	Specification
Pressure range	0 - 300 SLPM
Accuracy	±1.5% m.v.
Output	Analog 0.5-4.5V, Digital I2C
Supply voltage	5.0 VDC ±0.25V / 10–28 VDC
Wetted material	Silicon / PEEK / Viton
Operating temperature	-20°C to +70°C
Protection	IP50 Module
Process connection	Barbed / Push-to-Connect
Electrical connection	Hirschmann DIN 43650-A / M12 4-Pin / Flying lead

Applications

✓Critical Care Medical Ventilators & Anesthesia Workstations

✓CPAP & Sleep Apnea Oxygen Delivery Equipment

✓Industrial Nitrogen Generation & Mass Flow Controllers (MFC)

✓Fuel Cell Air Supply Stoichiometric Regulation

✓HVAC Cleanroom VAV Air Velocity Verification

Downloads & Documentation

Datasheet (PDF)

Dimensional Drawing

Upon Request

Installation Manual

Included with Dispatch

Calibration Certificate

100% Tested

QAP / Inspection Documentation

Provided where applicable for OEM supply

OEM ADAPTATION & CUSTOMIZATION

Need a different pressure range, output or connection?

Talk to an ACT Application Engineer. We adapt pressure spans, wetted metallurgy (316L, Hastelloy), process threads (BSP, NPT, Tri-Clamp), and cable lengths to your exact machinery.

+91 8879490008
