● COMPACT 300m SUBMERSIBLE
Compact Hydrostatic Level (Up to 300 mH2O)REF: ACT-ASPT-11s-Compact
.jpg)
GENUINE ACT SENSOR
CLICK TO ZOOM
FACTORY CALIBRATION & COMPLIANCE
✓ ISO 9001:2015✓ CE Compliant✓ Traceable Calibration
MODEL: ASPT-11s-Compact // PRESSURE

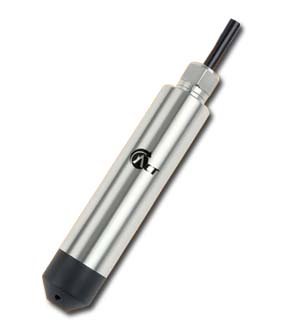

ASPT-11s-Compact ASPT 11s Submersible Pressure Transmitter (Compact Version)
Compact rugged submersible level transmitter with standard 4-20mA output submersible up to 300 meters water column depth.
Compact level measurement solution using hydrostatic technology with 4-20mA output, submersible up to 300m depth. IP67 stainless steel design for boreholes, rivers, and sewage.
Key Specifications
Factory Configurable| Parameter | Specification |
|---|---|
| Pressure range | 1 - 300 mH2O |
| Accuracy | ±0.5% F.S. |
| Output | 4-20mA (2-Wire), 0.5-4.5V Low Power, RS485 Modbus |
| Supply voltage | 5.0 VDC ±0.25V / 10–28 VDC |
| Wetted material | AISI 316L SS / Kevlar PUR |
| Operating temperature | -10°C to +70°C |
| Protection | IP67 Submersible (300m) |
| Process connection | Drop-In Submersible Cable |
| Electrical connection | Hirschmann DIN 43650-A / M12 4-Pin / Flying lead |
Applications
✓Deep Groundwater Extraction Boreholes & Monitoring Wells
✓River, Lake, and Reservoir Remote Hydrostatic Gauging
✓Municipal Sewage Lift Stations & Wastewater Sumps
✓Rainwater Harvesting & Urban Drainage Canals
✓Low-Power Solar / Cellular IoT Level Telemetry Nodes
Downloads & Documentation
Datasheet (PDF)
Dimensional Drawing
Upon RequestInstallation Manual
Included with DispatchCalibration Certificate
100% TestedQAP / Inspection Documentation
Provided where applicable for OEM supplyOEM ADAPTATION & CUSTOMIZATION
Need a different pressure range, output or connection?
Talk to an ACT Application Engineer. We adapt pressure spans, wetted metallurgy (316L, Hastelloy), process threads (BSP, NPT, Tri-Clamp), and cable lengths to your exact machinery.
