MODEL: ASDP-21D // PRESSURE

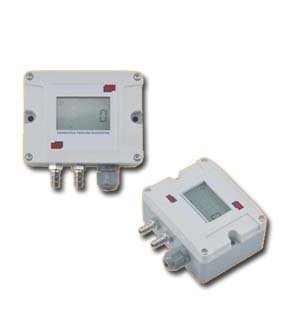

ASDP-21D ASDP-21D Differential Pressure Transmitter
High-performance MEMS micro-differential pressure transmitter with built-in temperature compensation for HVAC, cleanrooms, and filter monitoring.
High-performance differential pressure transmitter using advanced MEMS micro-pressure core with built-in temperature compensation. Accuracy up to ±1% FS for HVAC, clean rooms, and filter monitoring.
Key Specifications
Factory Configurable| Parameter | Specification |
|---|---|
| Pressure range | 100 Pa - 10 kPa |
| Accuracy | ±1.0% F.S. |
| Output | 4-20mA, 0-10V, RS485 Modbus |
| Supply voltage | 10–28 VDC (2-wire loop) |
| Wetted material | Flame-Retardant ABS / Silicon |
| Operating temperature | -10°C to +60°C |
| Protection | IP65 Cleanroom Enclosure |
| Process connection | Dual Barbed 4mm/6mm Ports |
| Electrical connection | Hirschmann DIN 43650-A / M12 4-Pin / Flying lead |
Applications
✓Pharmaceutical Cleanroom & Isolation Chamber Pressure Cascades
✓Hospital Operating Theater & Airborne Infection Isolation Rooms
✓HVAC Air Handling Unit (AHU) Bag & HEPA Filter Monitoring
✓Building Automation Variable Air Volume (VAV) Damper Control
✓Semiconductor Fab Room Airflow & Laminar Flow Hoods
Downloads & Documentation
Datasheet (PDF)
Dimensional Drawing
Upon RequestInstallation Manual
Included with DispatchCalibration Certificate
100% TestedQAP / Inspection Documentation
Provided where applicable for OEM supplyOEM ADAPTATION & CUSTOMIZATION
Need a different pressure range, output or connection?
Talk to an ACT Application Engineer. We adapt pressure spans, wetted metallurgy (316L, Hastelloy), process threads (BSP, NPT, Tri-Clamp), and cable lengths to your exact machinery.
