● 5-DIGIT ±0.2% PRECISION
FACTORY CALIBRATION & COMPLIANCE
✓ ISO 9001:2015✓ CE Compliant✓ Traceable Calibration
MODEL: AS-DG2 // PRESSURE

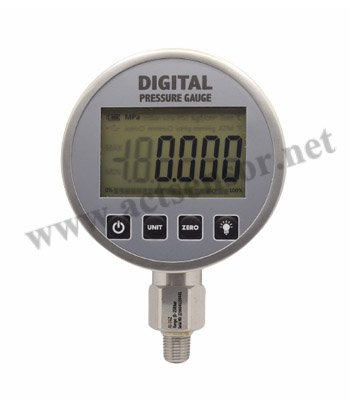

AS-DG2 5 DIGIT DIGITAL PRESSURE GAUGE
Precision 5-digit digital pressure gauge with ultra-high resolution, zero clearing, backlight, and all-stainless steel 304 casing.
Precise digital pressure gauge with large 5-digit LCD screen, real-time pressure tracking, zero clearing, and unit switching in vibration-resistant SS304 housing for equipment calibration.
Key Specifications
Factory Configurable| Parameter | Specification |
|---|---|
| Pressure range | -1 to 1600 bar |
| Accuracy | ±0.2% F.S. |
| Output | 5-Digit LCD Readout |
| Supply voltage | 10–28 VDC (2-wire loop) |
| Wetted material | AISI 304 / 316L SS |
| Operating temperature | -10°C to +60°C |
| Protection | IP65 SS304 Enclosure |
| Process connection | G1/4" / G1/2" / 1/4" NPT |
| Electrical connection | Hirschmann DIN 43650-A / M12 4-Pin / Flying lead |
Applications
✓High-Accuracy Calibration Transfer Standard
✓Hydraulic Test Bench Precision Proofing
✓Gas Pipeline & Pressure Vessel Leak Decay Testing
✓Aerospace & Military Mobile Pressure Testing Kits
✓Pharmaceutical Clean Utility Line Verification
Downloads & Documentation
Datasheet (PDF)
Dimensional Drawing
Upon RequestInstallation Manual
Included with DispatchCalibration Certificate
100% TestedQAP / Inspection Documentation
Provided where applicable for OEM supplyOEM ADAPTATION & CUSTOMIZATION
Need a different pressure range, output or connection?
Talk to an ACT Application Engineer. We adapt pressure spans, wetted metallurgy (316L, Hastelloy), process threads (BSP, NPT, Tri-Clamp), and cable lengths to your exact machinery.
